Multi-Mount Winch - Polaris Ranger
Multi-Mount Winch Kit
This kit will allow you to mount your winch on the front or the rear using the stock rear 2" receiver and the supplied front 2" receiver
Constructed of 3/16" steel
Metal bead blasted before they are powder coated for the best possible finish prep and durability
Complete installation instructions included
All mounting hardware included
Roller fairlead and winch not included
100% made in USA

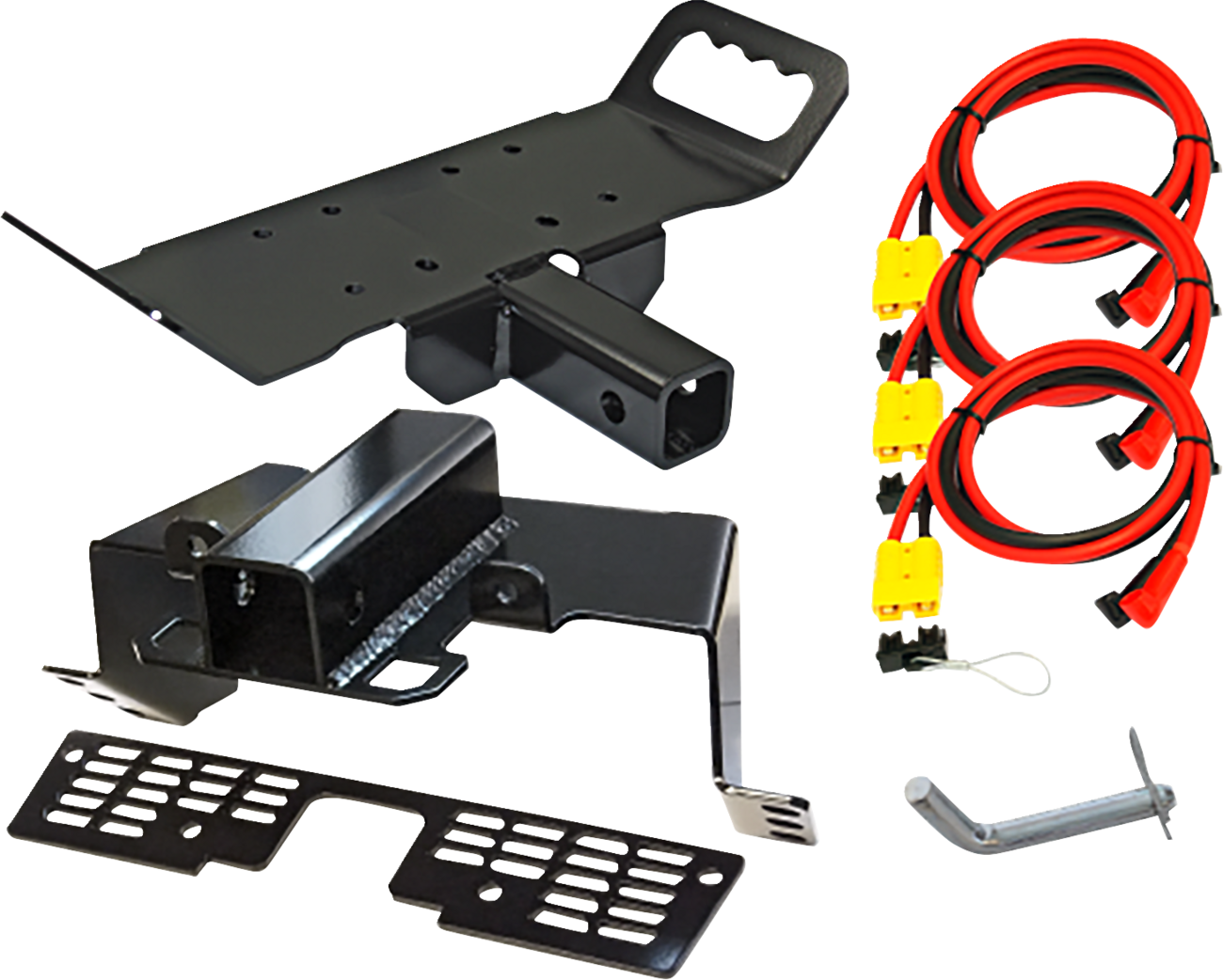

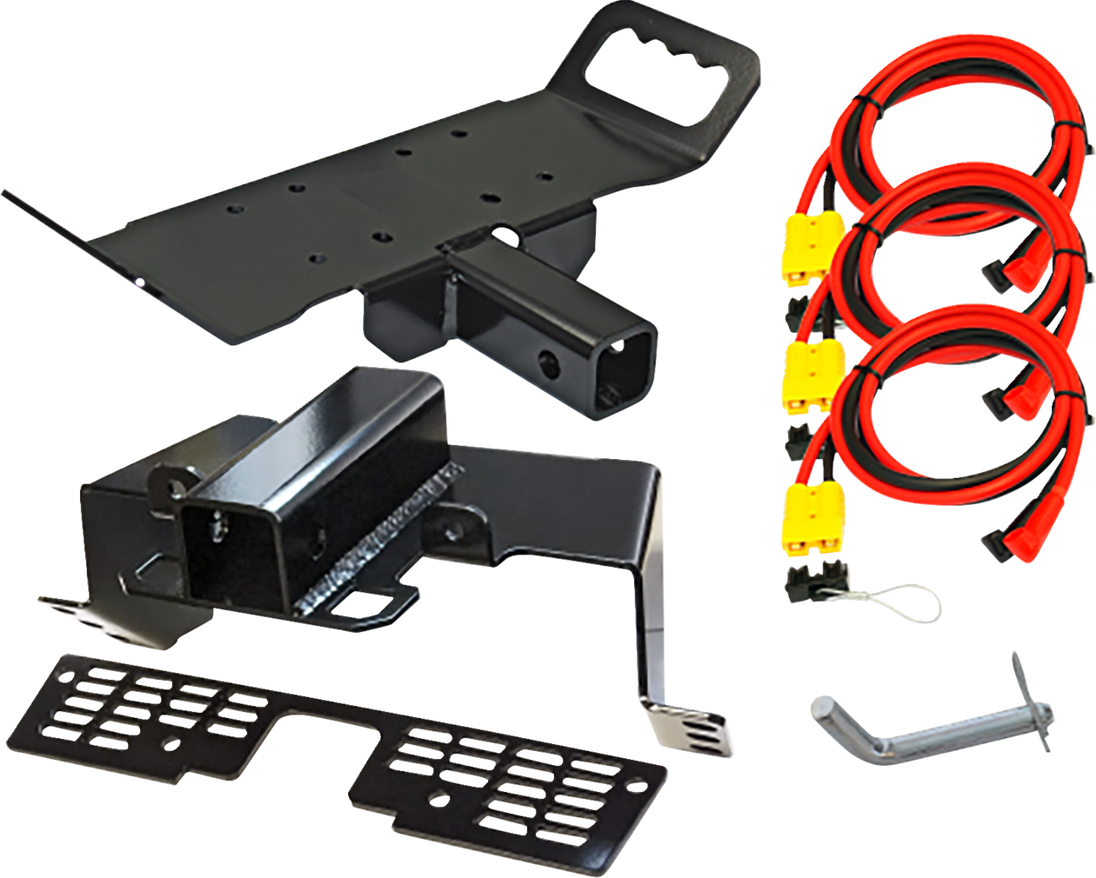

Kit includes the following:
Front Upper 2" Receiver #4504-0236
2" Receiver Winch Mount #4505-1072
20" Quick Connect that gets wired to your winch leads #4505-0962
48" Quick Connect that goes from your winch contactor to the front of your Ranger #4505-0963
120" Quick Connect that goes from your winch contactor to the rear of your Ranger #4505-0961
Standard 5/8" Hitch Pin
Designed to work with the following winches:
KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs / Vantage 4000lbs / Provantage 4500lbs
WARN: RT40 / XT40
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
